Description

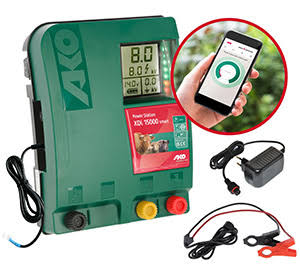

The AKO Power Station XDi 15000 smart Fence Device combines maximum power with smart technology.
With 20 Joules of charging energy, cloud connection, free mobile data transfer and a flexible 12/230 V power supply, it offers maximum power for your pasture up to a length of 80 km - at all times and in all places!
- smart Energiser - can be controlled via smartphone app and computer browser
- ultra powerful 12 / 230 Volt DUO unit
- for long fences even with heavy vegetation
- especially for very robust animals such as bulls, sheep and for keeping wild boar and wolves at bay
- 5-year warranty
Impact force and fence length: the AKO Power Station XDi 15000 smart is equipped with a charging energy of 20 J and a maximum voltage of 11,200 V. The device is used for fence systems up to 80 km without vegetation.
Power supply and animals: the device is a 12/ 230 V DUO fence device that can be operated with a 12 V connection cable or a 230 V mains adapter. Ideal for horses, bulls, cattle, sheep, goats, wild boar and wolves.
Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone. The device is equipped with an I=ON-Low|0=OFF|II=ON-High switch.
Display: the device is equipped with a digital display and a multi-coloured LED bar graph display (11 LEDs). The lower "red" LED indicates the battery check. The 10 LEDs above (red/yellow/green) are used for visual monitoring of the output voltage. Red =< 2,000 V | Yellow/green => 2,000 V.
Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. An integrated fitting allows wall mounting. If installed outdoors, the device must also be protected from rain and sunshine.
- extra-large, clear, permanently illuminated digital display (fence and earth voltage & "smart" connection quality)
- multi-colour, brightly lit LED bar graph display for quick recognition of the current fence status (fence and earth voltage)
- I-0-II level switch (I=ON-Low / 0=OFF / II=ON-High)
- equipped with 2 fence outputs (high/low)
- fence pulse ideally adapted to the fence load, maximum protection certainty with minimum energy consumption
- optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
- AKO XDi devices automatically adapt to the fence status, ensuring the highest protection certainty, and making your work easier by reducing vegetation growth to a certain degree
- delayed shock strength adjustment makes touching the fence safer for people and animals
- the fence is constantly monitored by an alarm function, which triggers an alarm and slows the pulse sequence if the fence is touched for an extended period of time
- robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
- microprocessor controlled
- integrated hanging device for wall mounting
- corresponds to applicable EU safety standards
- directly integrated cloud connection
- distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems
- permanently free mobile data transfer to the app
- if the protection voltage falls below the pre-set minimum level, the user is notified with a real-time alert in the free app on their smartphone
- recommended solar module: 375999 (115 W), connection directly to the 12-Volt battery, optionally with ground anchor 442386 or fixing set 442386 for metal box
